HARLEY PARTS
High Quality Parts from CAS4
FORWARD
CONTROL
EXTENSION KITS
NOTE: Some Billet
Control Kits Available Extended
- Moves the OEM controls forward almost 3" for a
more comfortable riding position
- Kit includes black anodized billet aluminum adapter
plates, extended stainless steel rear brake line, extended shifter rod,
kickstand spring pin and necessary hardware
- Uses stock footpegs, brake lever, shift lever and
shift arm
| Part # |
 Description |
List Price |
Your Price |
| DS16010206 |
3" Extended Forward Controls: for
'2007-up FX - Softail |
$235.95 |
$199.95 |
| DS16010167 |
3" Extended Forward Controls: for
'2000-2006 FX - Softail (DS243460) |
$235.95 |
$199.95 |
3-1/4" Extended Forward Controls
for '00-'06 FXST
If you're a little taller than average
and ride an FXST Model, Küryakyn has extended forward
controls for you! Our beautifully sculpted, investment cast
mounting plates are nicely polished and chrome plated.
This kit reuses the stock shift lever,
splined shift shaft, brake pedal, and master cylinder.
Includes an extended length braided stainless brake line and
all necessary hardware. Accepts any H-D style male mount
footpegs, sold separately.
NOT - FL - SOFTAIL
| Part # |
Description |
List Price |
Your Price |

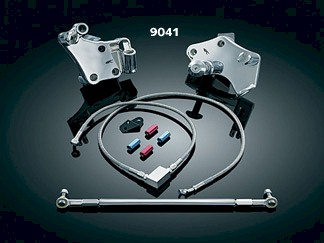

| KU9041 |
Extended Forward Controls: for '2000-2006 Softail
|
$445.95 |
$395.95 |
Extension Kit for Dyna Forward Controls
Welcome relief for tall Dyna Wide Glide riders. This kit moves the existing,
stock forward controls a full three inches 3" farther
forward. The set includes extension plates, countersunk trim plates, linkages,
and all hardware. All components are show-chromed. Only basic hand tools are
needed to complete this easy installation. Fits all FXDWG and other Dyna models
using H-D forward controls. DO NOT USE WITH 16 X 3.5 FRONT WHEEL.
| Part # |
Description |
List Price |
Your Price |
| KU9062 |
3" Extension Kit for OEM Dyna Forward
Controls 1991 - 2002. |
$215.95 |
$194.95 |
| KU9049 |
3" Extension Kit for OEM Dyna Forward
Controls Fits:
2003-2008 FXDWG, '08-'09 Fat Bob with Forward Controls, & any Dyna Models
using H-D Forward Controls (P/N 49080-03 or 49080-06) (ea)
Note: P/N 9049 will also fit ’08-’10 FXDF, ’09-’10
FXDFSE, or ’10 FXDWG if stock exhaust has been removed & replaced with a
staggered dual system. |
$215.95 |
$194.95 |
| DS243469 |
2" Extension Kit for OEM Dyna Forward
Controls 1991 - 2002. |
$125.95 |
$110.95 |
NOTE: 1991 - 2002 Dyna Model
brake rods are shorter that 2003 models, 91 - 02 kits can be used on 2003 models
if you lengthen the brake rod.
Chrome Forward Controls for Dyna Glide® Models
Available in stock or 2"-extended length. Complete kits
include ribbed foot and shifter pegs, mounting plates, control arms and all hardware. Fit all Dyna Glide® models from 1991 to present.
| Part # |
Description |
List Price |
Your Price |
| CC17635 |
Chrome Forward Controls Stock length kit Fit all Dyna
Glide® models from 1991 to 2005. (CS060154) |
$388.95 |
$349.95 |
| CC17636 |
Chrome Forward Controls 2 "extended kit Fit all Dyna
Glide® models from 1991 to 2005. (CS060155) |
$410.95 |
$369.95 |
NOTE: 1991 - 2002 Dyna Model
brake rods are shorter that 2003 up models, 91 - 02 kits can be used on 2003 up models,
but may require you extend the brake rod. 2006 up models will requires rod
extension of both rods.
4" Extended Forward Control Kits for Softail® Models
Extended Forward Controls For FXST. Designed for riders
over 6 ft. tall. These chrome units extend the footpegs 4”
forward
and keep the right and left peg parallel while retaining
stock peg to pedal distance. Extension kits utilize stock brake
pedal shifter arm and lever. Brake and shifter plate supplied in
heavy 5/16” steel along with longer brake and shift rods. Fits
FXST, FXSTC and FXSTS. Also available in complete units with
all hardware, for both sides.
Includes

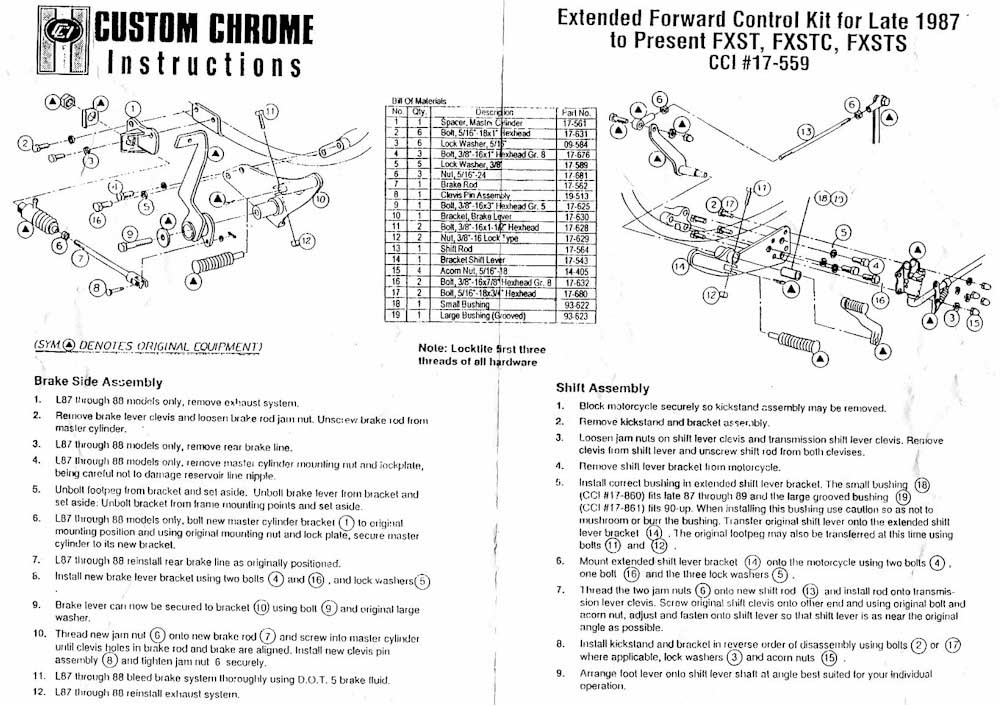

all necessary parts and detailed instructions. CLICK
HERE FOR SIMILAR INSTRUCTIONS.
| Part # |
Description |
List Price |
Your Price |
| VT220490* |
Extended Forward Control Kits Fits
1986 - early-1987 Softail®
models (with top-finned Girling caliper). May be installed on 1986 Softail® models if the
oil filter is relocated (CC-17558)(CS060072) |
$210.95 |
$190.95 |
| VT220492* |
AS ABOVE - COMPLETE KIT |
$310.95 |
$282.95 |
| |
|
|
|

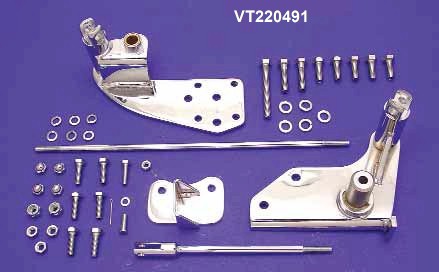

| VT220491 |
Extended Forward Control Kits Fits Softail® models from
late-1987 to 1999 (with smooth Kelsey-Hayes caliper) (CC17559)CS060073) |
$210.95 |
$190.95 |

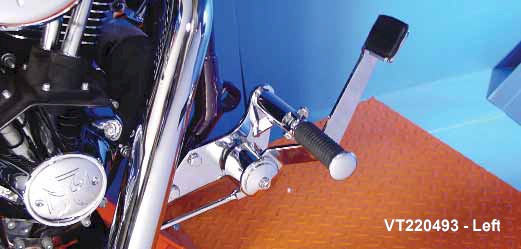

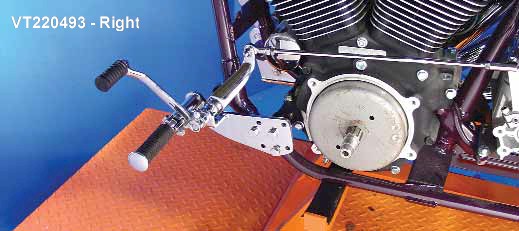

| VT220493 |
AS ABOVE - COMPLETE KIT |
$310.95 |
$282.95 |
*Note: Above models fit 1986 models when oil filter on shift
side is relocated. Can fit 1984-85 models if master cylinder
bracket is fabricated and welded in place.
Khrome Werks Control Relocation Kit for Softail® Models
Chrome-plated kit relocates the forward controls almost three inches further forward
providing long-legged riders a more comfortable riding position. The stock
footpegs, shift
lever, brake lever and brake linkages must be re-used, but a new shifter arm and extended
shift rod are provided. Includes all necessary hardware and detailed instructions. Fits
FXST, FXSTC, FXSTS and FXSTSB models from 1987 to present. It may also be installed on
1986 Softail® models if the oil filter is relocated.
| Part # |
Description |
List Price |
Your Price |
| CC31569 |
Khrome Werks Control Relocation Complete kit
for Softail® Models |
$284.95 |
$254.95 |
If you don't see it here,
E-mail us.
We haven't had a chance to post it yet.
