OFFSET
SPROCKETS
XL WIDE TIRE ACCESORIES
 SUPPORT KIT |
 BELT OR CHAIN DRIVE |

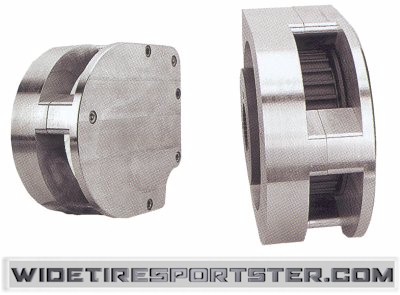

5 SPEED SPORTSTER COUNTERSHAFT SUPPORT KIT - BELT DRIVE:
The custom billet support plate with carrier bearing is built to support the outside of the offset sprocket or offset pulley. This is meant to prevent flexing of the drive gear and also to prevent extreme wear on the transmission bearings and main shaft. For Sportster applications only.
Heat treated gear teeth and hard anodized pulley for longer sprocket and pulley life available. Both are matching for carrier bearing and support plate and come with nut & locking allen screw.
| XL Countershaft Support Kits | |||
| Part # | Description | Retail |
HIT ORDER FOR YOUR PRICE |
| AP10100 | 2004 - Up - SUPPORT KIT - 240-250 Tire 5 Speed Evolution Sportster Kit 2004 -up Rubber Mounted Models - Order Chain Sprocket or Belt Pulley Separately. | $449.95 |
 |
| AP10101 | 1990 - 2003 ONLY - SUPPORT KIT ONLY - 240-250 Tire 5 Speed Evolution Sportster Kit 1990 thru 2003 - Order Chain Sprocket or Belt Pulley Separately. | $449.95 |
|

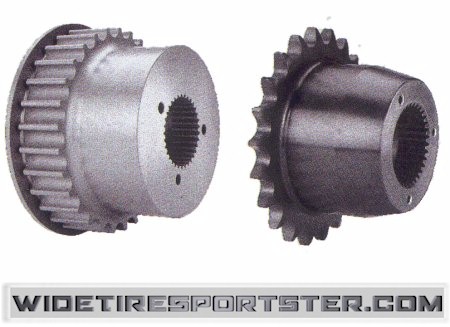

| AP10102 | 240-250 Chain Sprocket for above Support Kit - 1990 - up Models. | $295.95 |
|
| AP10103 | 240-250 Belt Pulley Sprocket for above Support Kit - 1990 - up models. | $325.95 |
|
| APBEARING | Replacement Support Bearing Only for above kits. | $39.95 | |
| APCSPACER | Replacement Chain Sprocket Spacer - Not included with SPROCKET ONLY - Included with Complete Chain Drive Kit. | $19.95 | |
NOTE - CHAIN SPROCKETS REQUIRED A SPACER INCLUDED WITH COMPLETE CHAIN KIT ONLY
 |
 |

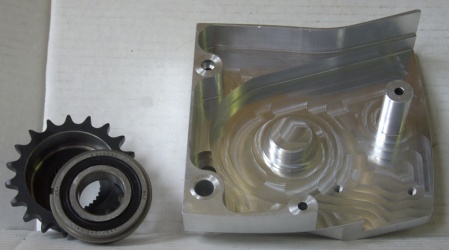

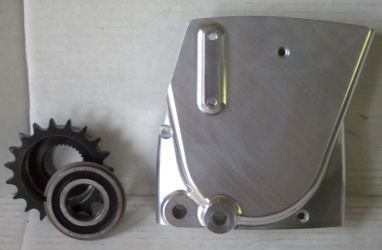

5 SPEED SPORTSTER COUNTERSHAFT SUPPORT KIT - CHAIN DRIVE :

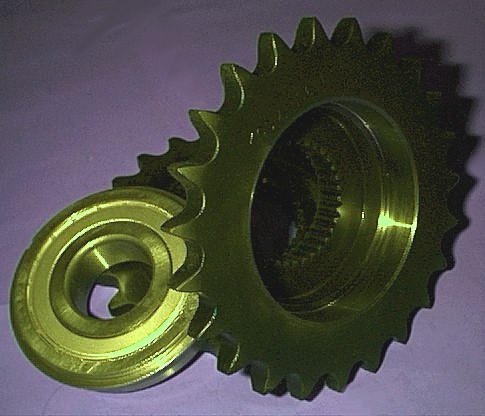

If you are putting a bigger tire or wheel on your Evo Sportster this product makes your job easy. This kit utilizes a machined and heat-treated steel sprocket to offset the chainline. A sealed 52mm bearing is installed in the bore of the sprocket and is connected to the support plate through a machined aluminum flanged spud. The output shaft is thus supported outside the chainline. This reduces the load on the gearbox and improves handling by maintaining consistent chain tension. Sold as seen with support bearing. (Sprocket sold separately.) Use a 180 or 200 series tire with chain drive.
| XL
Countershaft Support Kits |
|||
| Part # | Description | Retail | CAS4 |
| XL-MTA-OBBK-E5 | Support - 5 Speed Evolution Sportster Kit 1990 thru 2003. Includes Support and Bearing Only. Order Sprocket Separately. | NA | DISCONTINUED |

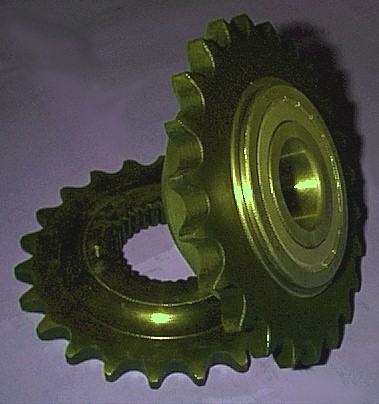

| XL-SPK5E-21 | Sprocket - 21 tooth, 5 Speed Evolution Sportster 1-1/16" offset sprocket. | NA | DISCONTINUED |
| XL-SPK5E-19 | Sprocket - 19 tooth, 5 Speed Evolution Sportster 1-1/16" offset sprocket. | NA | DISCONTINUED |
| XL-SPK5E-BRG | Bearing - Pilot / Support Bearing for 5 speed offset sprocket | NA | DISCONTINUED |
 |
 |
|
 |
 |

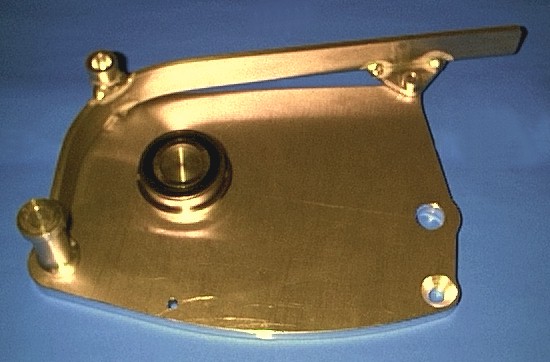

4 SPEED SPORTSTER

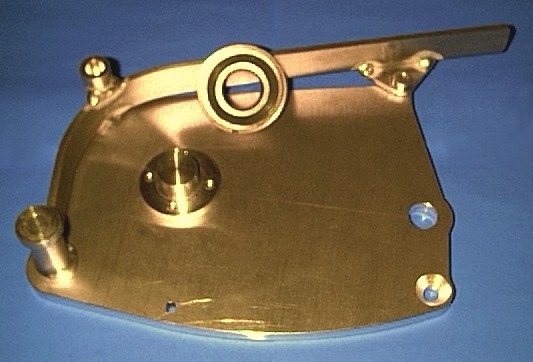

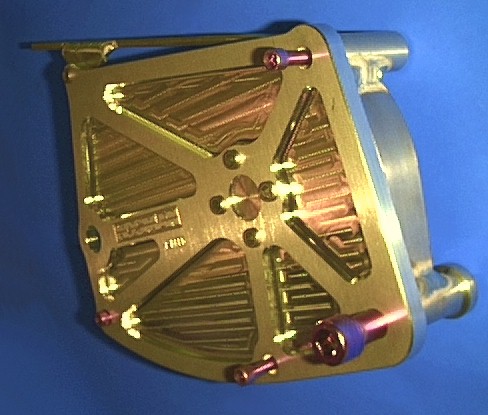

COUNTERSHAFT SUPPORT KIT - CHAIN DRIVE :
4 SPEED KITS ARE DISCONTINUED - WE ARE LEAVING THE 4 SPEED
KITS POSTED FOR REFERENCE ONLY.

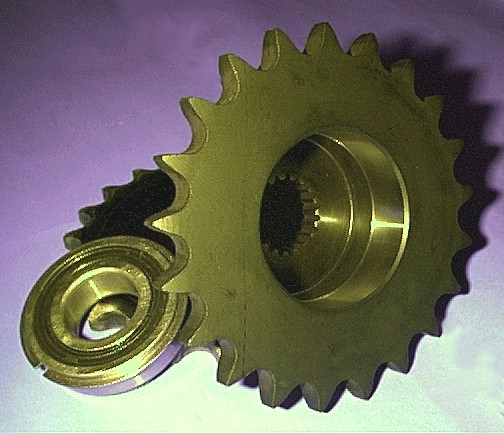

If you are putting a bigger tire or wheel on your Evo Sportster this product makes your job easy. This kit utilizes a machined and heat-treated steel sprocket to offset the chainline. A sealed 52mm bearing is installed in the bore of the sprocket and is connected to the support plate through a machined aluminum flanged spud. The output shaft is thus supported outside the chainline. This reduces the load on the gearbox and improves handling by maintaining consistent chain tension. Sold as seen with support bearing. (Sprocket sold separately.) Use a 200 series tire with chain drive.
| XL
Countershaft Support Kits |
|||
| Part # | Description | Retail | CAS4 |
| XL-MTA-OBBK-E4 | 4 Speed Evolution Sportster Kit 1984-1/2 thru 1989. | $225.95 | DISCONTINUED |
| XL-SPK4E-23 Discontinued |

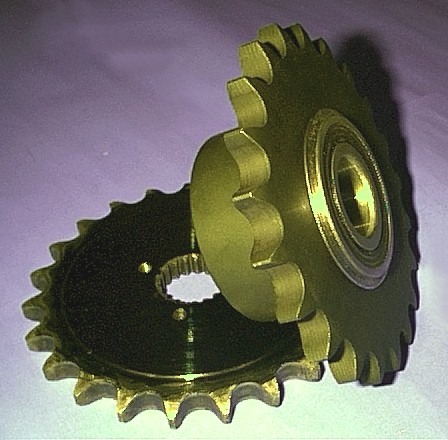

23 tooth, 4 Speed Evolution Sportster 1-1/16" offset sprocket. | $175.95 | N/A |
| XL-SPK4E-22 Discontinued |
22 tooth, 4 Speed Evolution Sportster 1-1/16" offset sprocket. | $175.95 | N/A |
| XL-SPK4E-21 Discontinued |
21 tooth, 4 Speed Evolution Sportster 1-1/16" offset sprocket. | $175.95 | N/A |
| XL-SPK4E-BRG Discontinued |
Pilot / Support Bearing for 4 speed offset sprocket | $55.95 | N/A |
 5 - SPEED |
 5 - SPEED |
 4 - SPEED Discontinued |
 4 - SPEED Discontinued |
NOTES:
1: Right side foot peg and
master cylinder relocation may be required.
2: Exhaust Pipes may need realignment or clearance modification.
3: Other clearance may be a factor.
4: Swingarm Modification or replacement required , ( it must be
wider < ,: ).
5: When converting from Belt drive - New sprocket spacer and seal must be used,
( sold separately ).
Also see:
Non-Supported .09" offset CHAIN sprockets Click Here:
Non-Supported Belt Offset Pulleys Click Here:
If you don't see it here,
E-mail us.
We haven't had a chance to post it yet.
