High Quality  Parts  from
CAS4

COMPUTER DESIGNED
WIDE & STRETCHED REAR
EVO SPORTS
TER
® SWINGARM KIT

I AM NO LONGER MAKING THESE
SEE OUR 240 KITS - CLICK HERE

Sportster Wide Rear Swingarm 04

Sportster Wide Tire

XL Swingarm Sportster Stretched Swingarm

Click on Image for Larger View

Pro-Stock Style Swingarm Look, will fit a 180, 190 or even a 200 Series Tire.  2" stretched and  2" wider, fits all Evolution® Sportsters® , belt and chain drive.

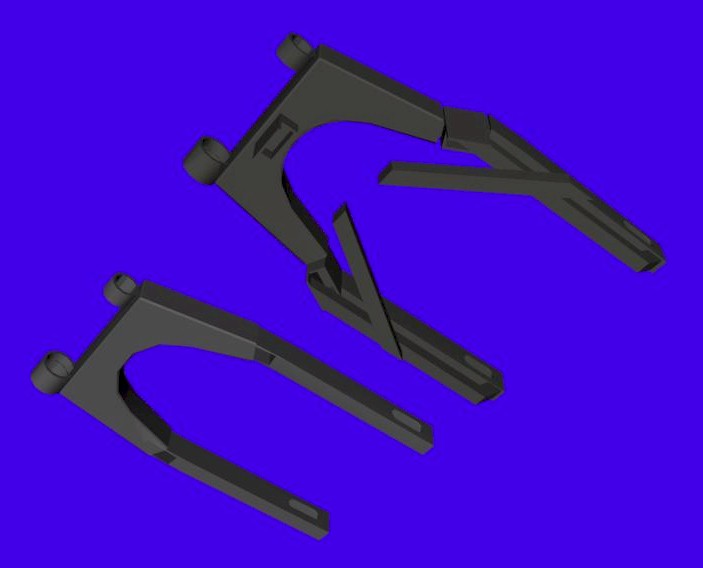

This " CAD Designed "  Swingarm Kit modifies a  factory swingarm and comes with solid billet offsets, and detailed blueprints, all the math is already done for you. Kit includes the hard to find components such as the solid billet offsets, Chrome  3/4": x 16 NF thread castle nuts and stainless steel narrow washers for your 3/4" axle ( you need to thread a 3/4" steel rod to 3/4" x 16NF thread.  3/4" square tubing and 1" x 2" rectangular tubing is required to build the lower brace, and a length of 3/4" steel rod is required for your axle, this is easy to find steel. Inside distance will be at 10-5/8" giving you the ability to run a 108 or 200 series tire with room to spare.

This kit is not for the " NOVICE ".  Cutting, grinding and welded is required for installation of this kit.

Use a 180 or 200 Series tire with Belt or Chain Drive.

NOTE: " IMPORTANT LIABILITY STATEMENT BELOW ", Not for street use, not " DOT " approved.



XL Swingarm Kit
Modify a OEM Swingarm  Kit

Kit includes:

  • Option A: Includes 2 solid billet offsets, detailed swingarm modification instructions with all measurements clearly outlined with blueprints to make the lower support brace out of cheap readily available steel tubing. We also through in 2 Chrome Castle nuts and 2 narrow wall stainless steel washers. This option gives you the hard to find parts.

  • Option B: Includes the above but we  " pre-cut  " the lower support tubing for you. NOTE: I do not have much time on my hands and this may take a few days. I strongly suggest that you go for option ( A ) above. See below for pricing and order info.




Sportster Swingarm Kit
Pre-cut Steel Components

harley swingarm kit
Cut Your Swingarm
XL Swingarm
Weld-in Solid Steel Stretched Offsets
Extended Swingarm
Weld-on Support Brace Center Mounts
Sportster Swingarm
Weld-on Rear Support Brace
Sportster Swingarm Wide
Weld-on Front Support Mount
XL Swingarm Wide Tire
Weld-on Front Support Brace
XL Sportster Wide Swingarm
HELLO !!!!!



OrderSwingarm Modification Kit
Part #  Fit & Finish Length Price
XLWT218A Bare Swingarm Kit, Includes the 2 solid billet offsets ( very hard to find  ), 2 Chrome 3/4" x 16 NF thread castle nuts, 2 narrow stainless steel washers,  instructions / blueprints to make the lower support brace out of easy to find steel tubing. 3/4" square and 1" x 2" rectangular.  +2" DISCONTINUED
WAS $109.95
XLWT218B Swingarm Kit, Includes above, but we cut the lower support parts for you. It is cheaper if you make these parts. +2" DISCONTINUED
WAS $199.95



BELT DRIVE PULLEY'S

CHAIN DRIVE SPROCKETS



For Show Only ,: ) ,  Not for street use. Please Read our Terms and Conditions below !!

NOTES:

1: Offset transmission sprocket required.
2: Frame modification required under seat area to accommodate a wide fender and shock geometry !
3: Year and model will determine what other parts are required.
4: To be used with 17 X 5.75 inch wheel.



Email
If you don't see it here, E-mail us.
We haven't had a chance to post it yet.
